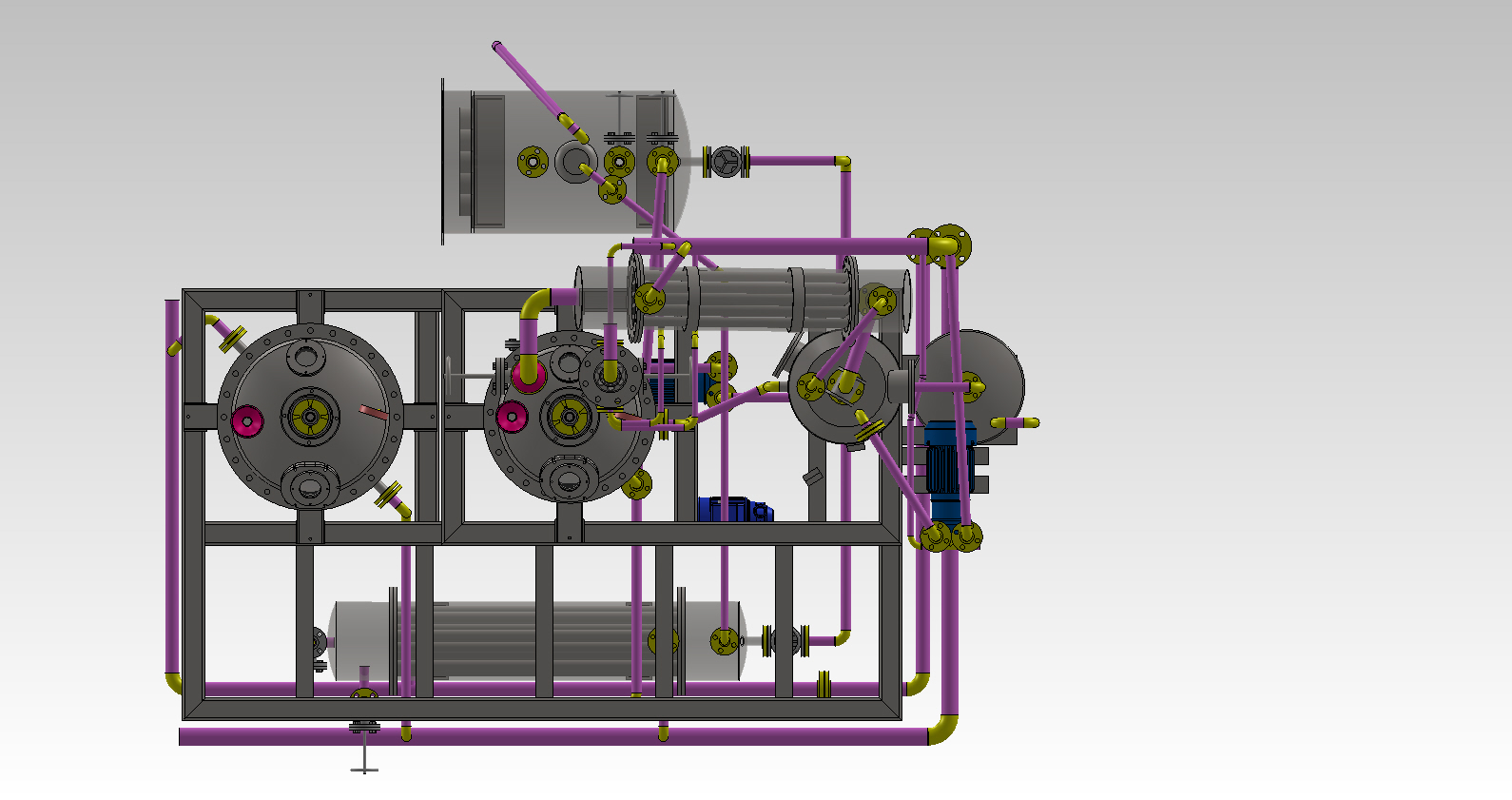

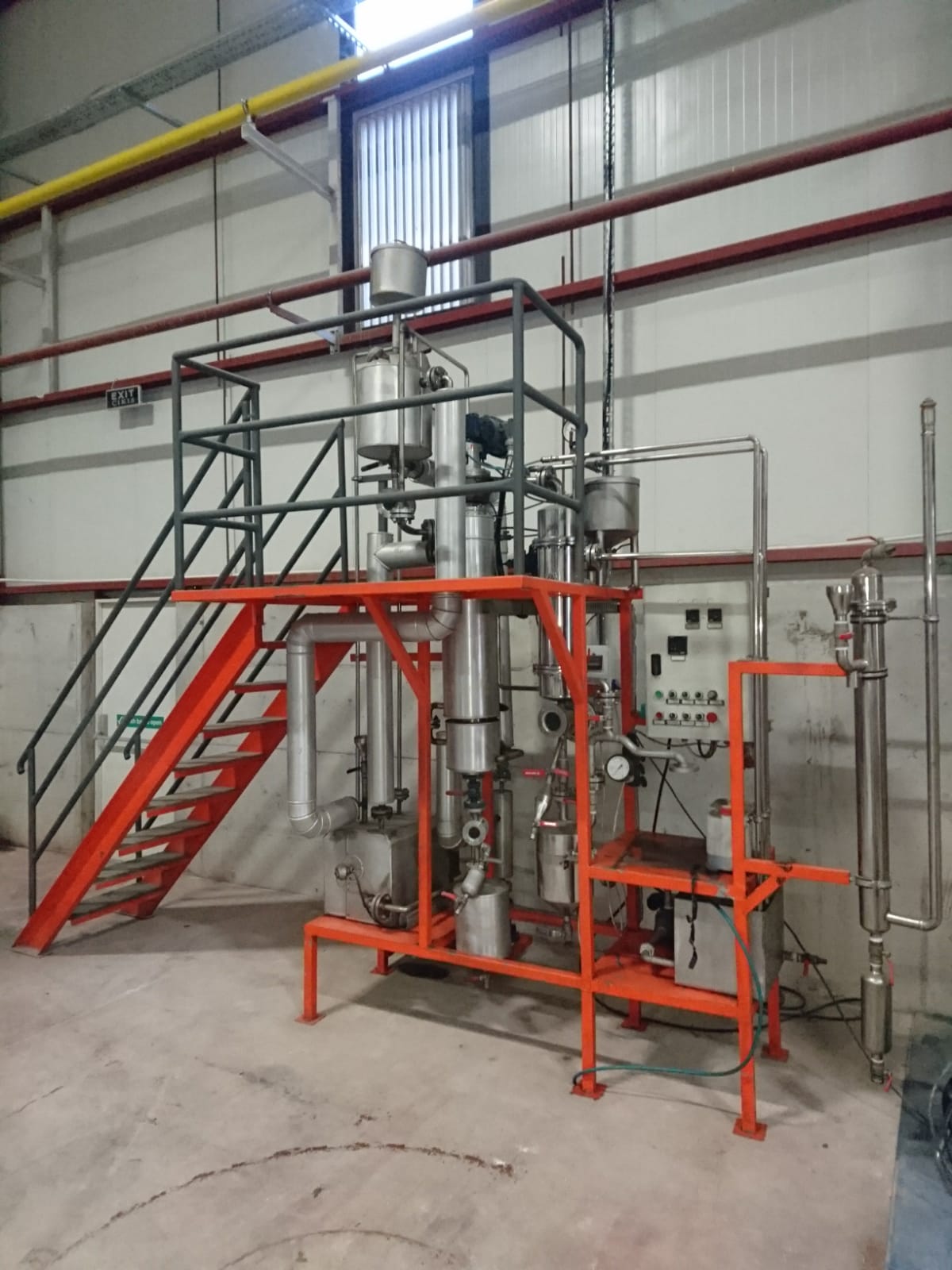

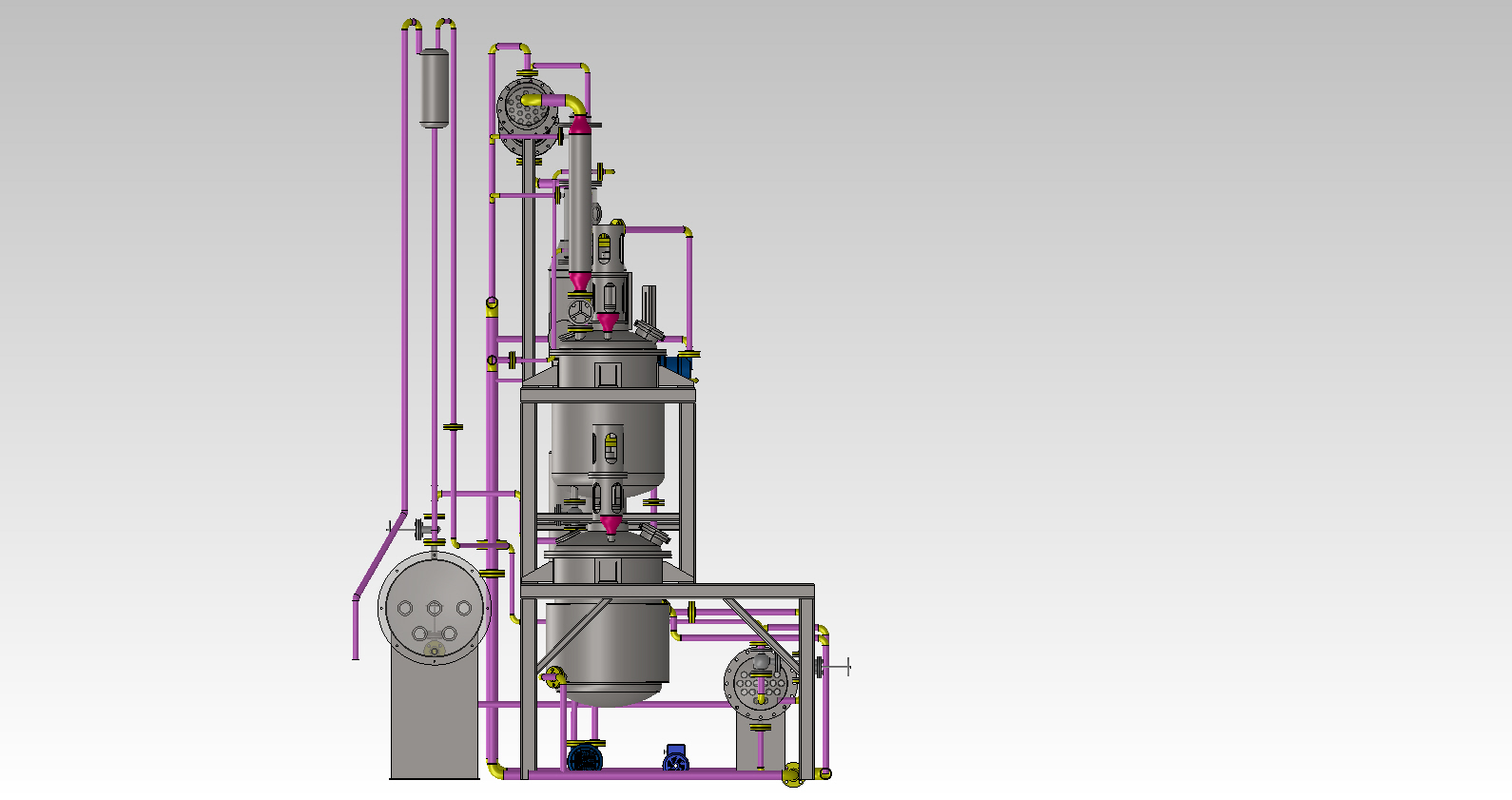

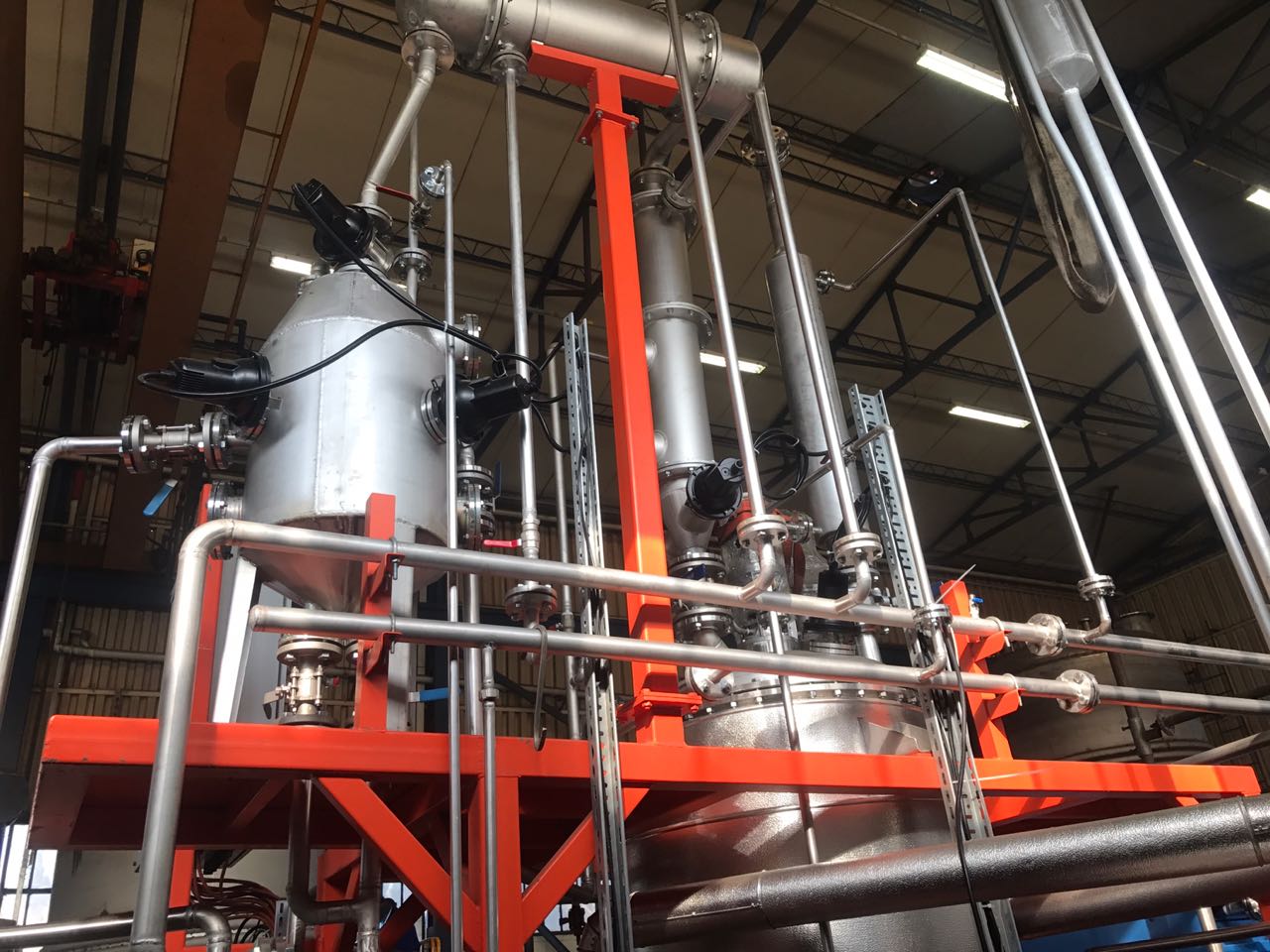

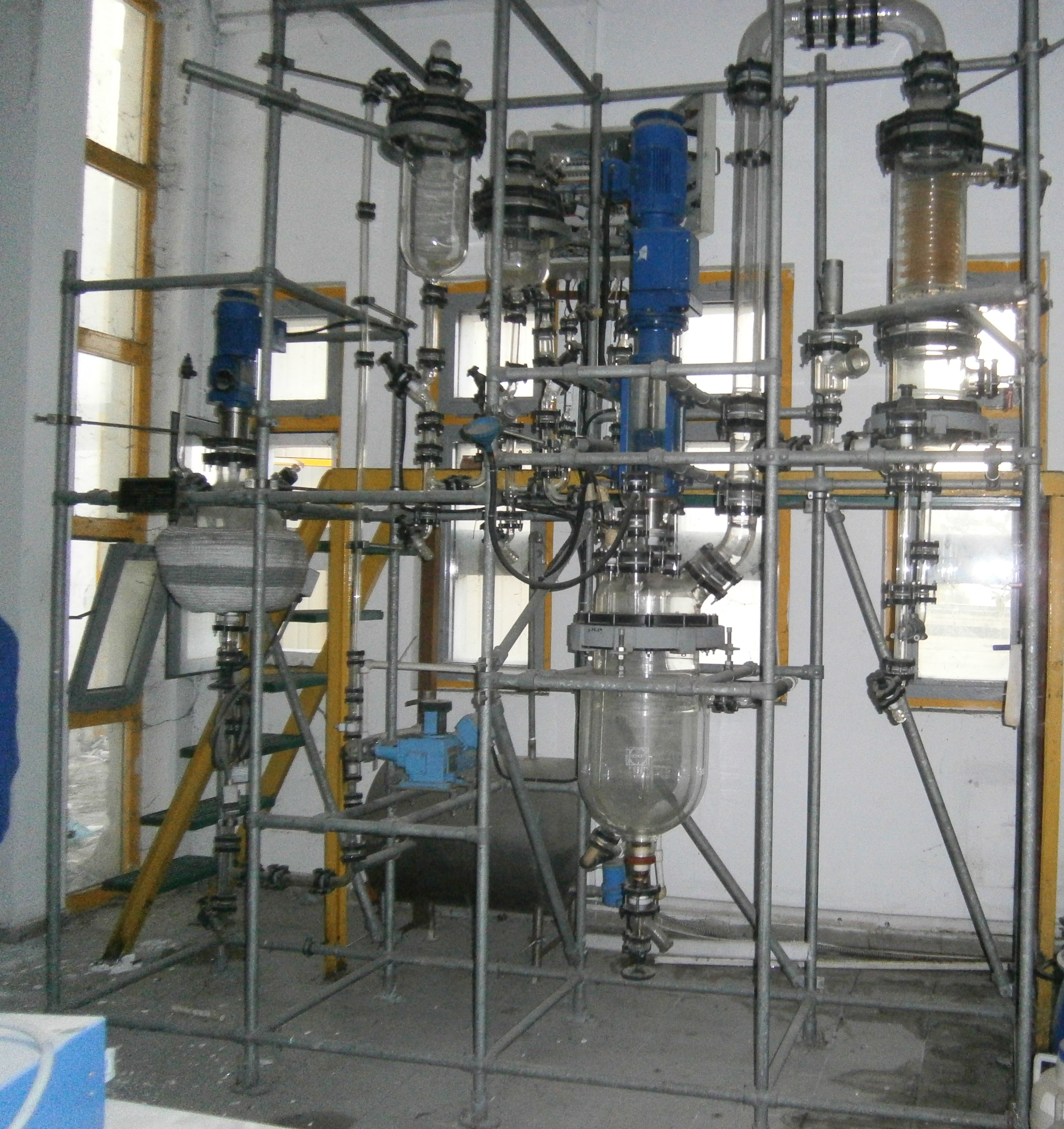

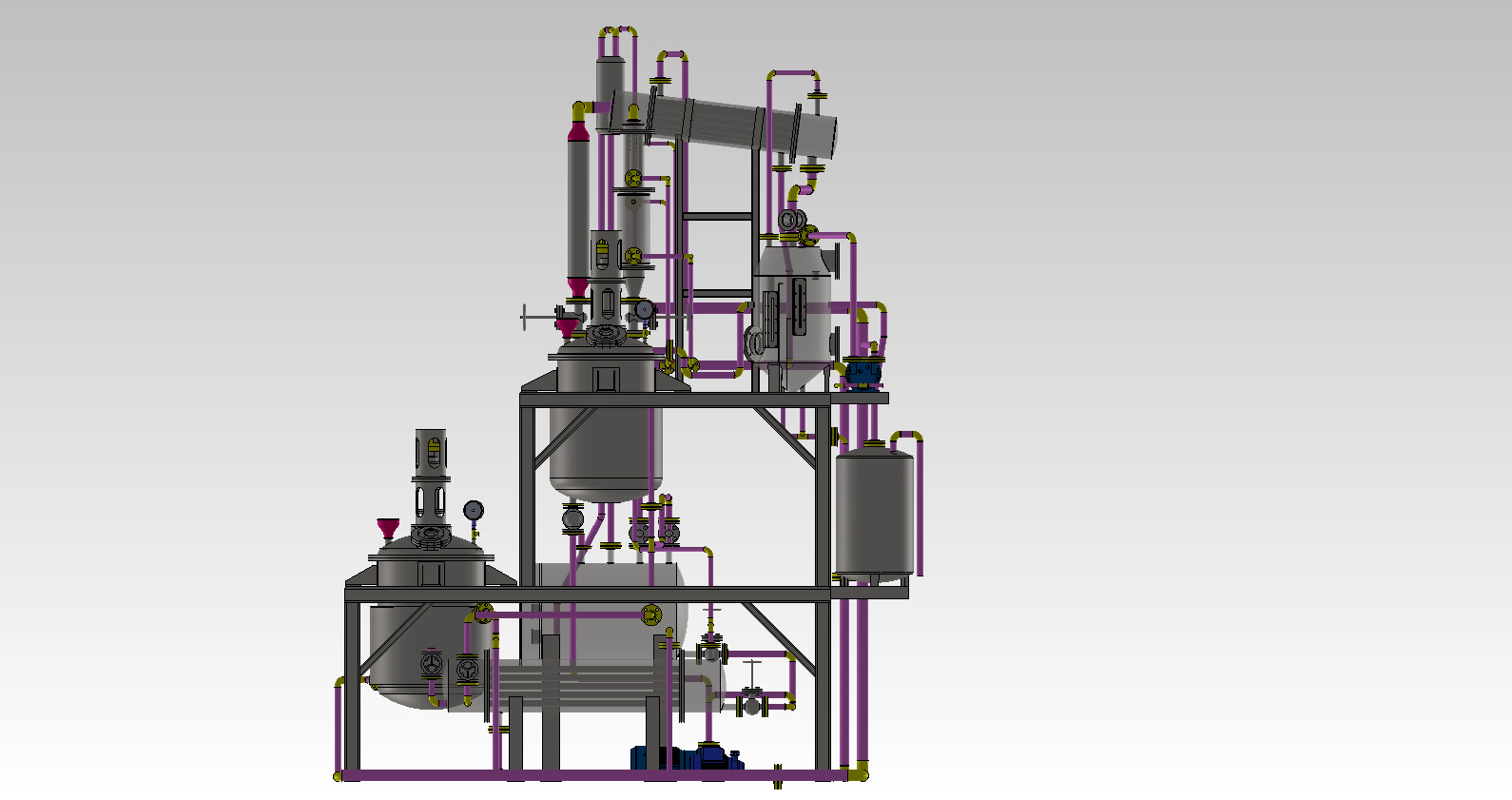

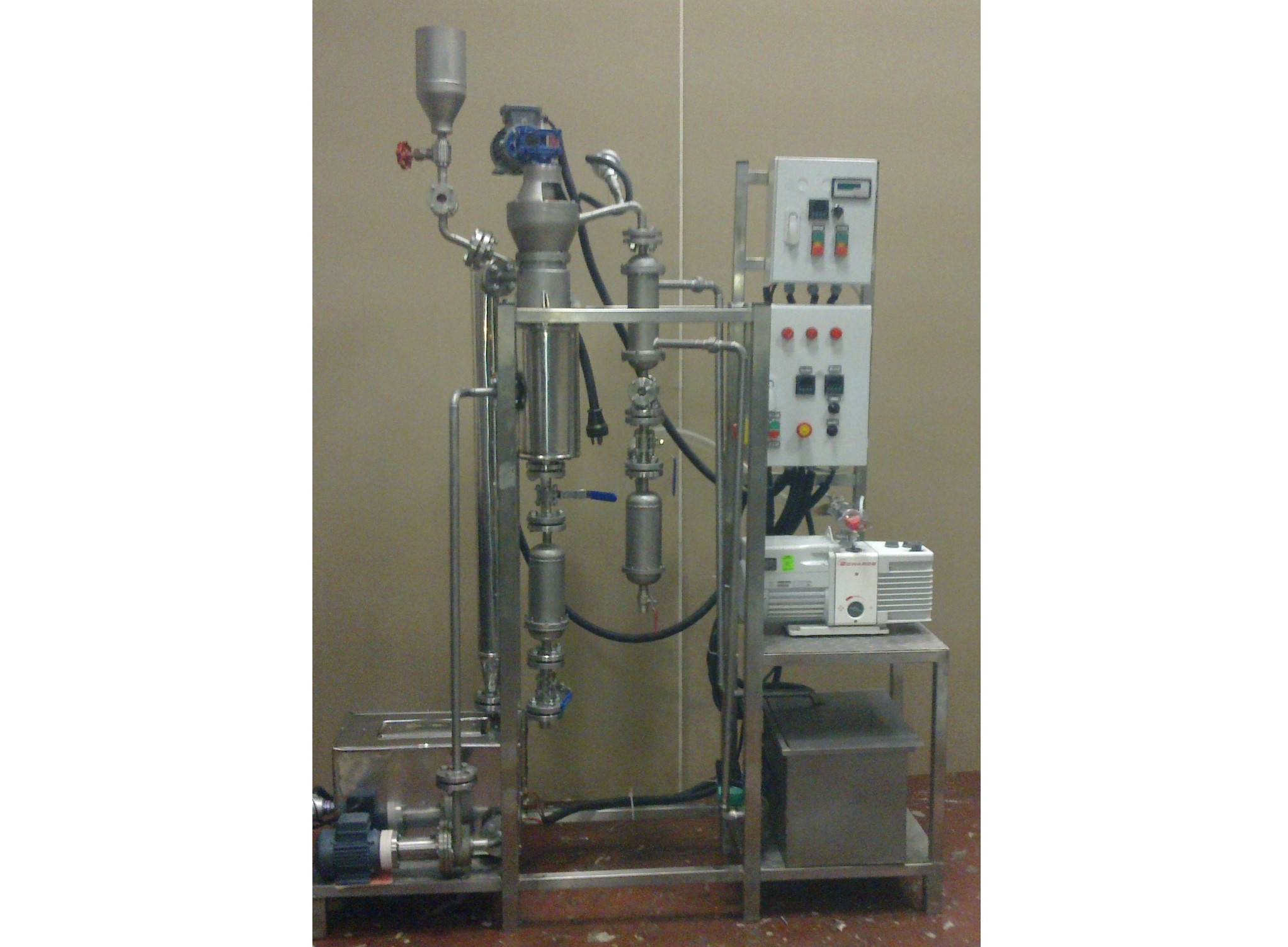

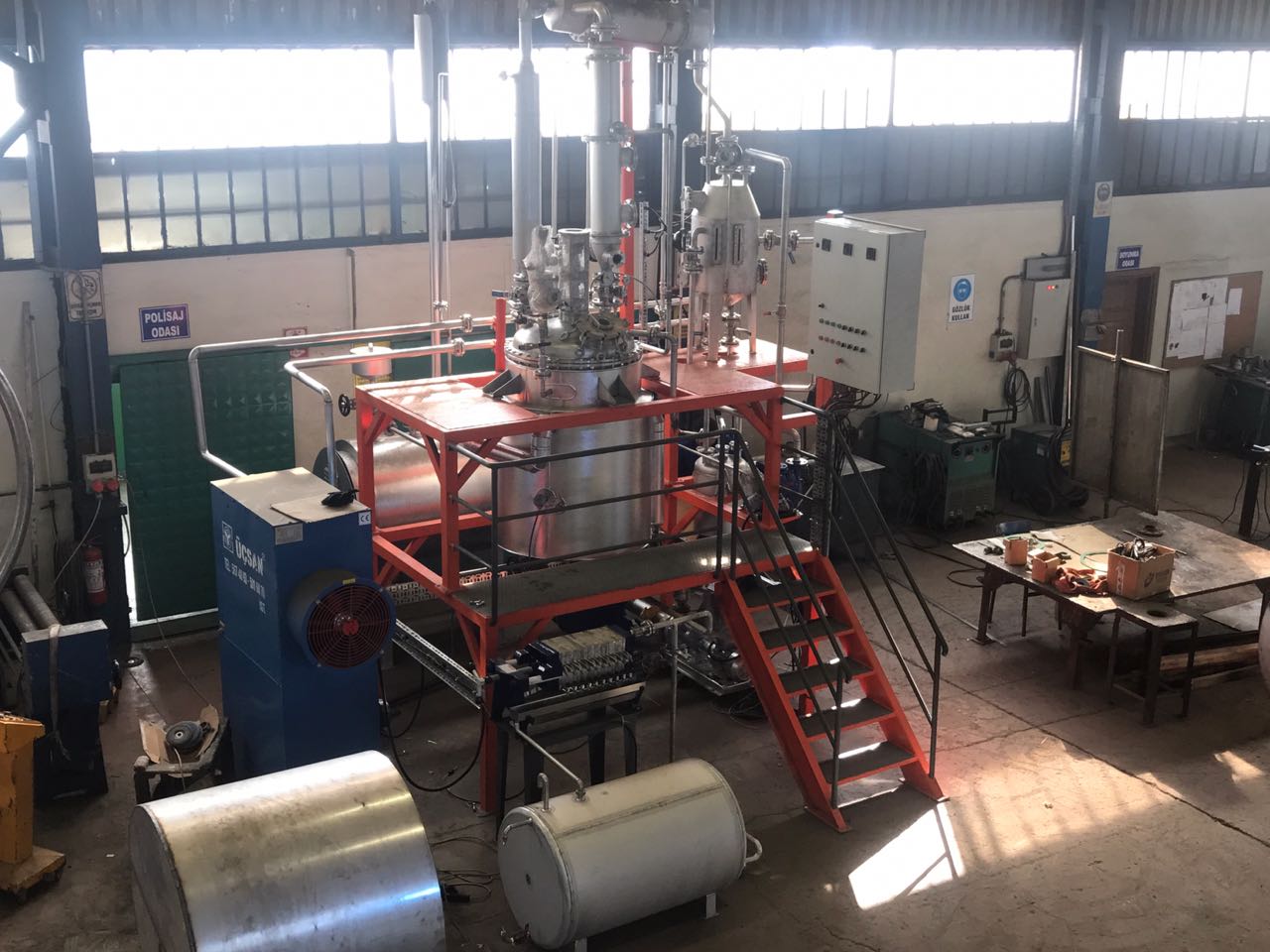

In our pilot reactor, for the purpose of testing the formulation and process part of the product to be produced in industrial-size reactors. The pilot reactor is designed and manufactured by our company's well-equipped and experienced staff. It is also manufactured with the collaboration they will do with our staff according to customer demand. Pilot reactors are manufactured from complete stainless steel (AISI 304 or 316) with precision and sacrifice. The most important benefit of the pilot reactor is the production of the products to be produced in high quantity with a pilot version of the system of minimum and industrial size.

  • Mechanical or soft packing
  • Fully automatic, PLC controlled
  • High quality and long-term warranty
  • Compliance with international standards
  • Certified non-flammable steel material (AISI 304, 316)
  • Ex-proof if desired according to the application method
  • High pressure and high temperature resistance upon request
  • Wing design according to production, wave breaking or foam breaker
  • On the outer body, jacket or half pipe serpentine, on the inside, serpentine heating and cooling system from the draw pipe
  • Glue
  • Resin
  • Emulsions
  • Suspension
  • Fermentation
  • Esterification
  • Polymerisation
  • Crystallization etc.
  • Catalyst and enzyme processes
  • Blender
  • Decantor
  • Weighing systems
  • Exchanger & Condenser
  • Polished inner and outer surface
  • External insulation for thermal insulation
  • Creation of new product formulas
  • Establishment of a new finished product specifications
  • Designing special equipment and structures required for the new process
  • Regarding the preparation process of the operating instructions and manuals
Motor KW (HP) Blade Speed (rpm) Blade Diameters (mm) Boiler Capacity (lt)
ATM75 75-102 0-800 600-600 3500-500
ATM45 45-61 0-900 450-500 2000-2400
ATM37 35-50 0-1000 350-450 1500-2000
ATM30 30-40 0-1100 320-350 1200-1500
ATM22 22-30 0-1200 280-300 800-1200
ATM22 15-20 0-1300 250-280 600-800
